The EKKO EP20JLi Lithium Iron Phosphate Electric Walkie Pallet Jack is designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.



Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.



  • Lithium 48V Powered
  • Load Capacity 4400 lb
  • Fork Size 27x45
  • Raised Height 7.8"
  • Lowered Height 3.35"
  • Pinwheel Capability
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • (1) Lithium Iron Battery LiFePO4 Included 48V/20Ah
  • 3 Years Limited Warranty
  • New with PinPad

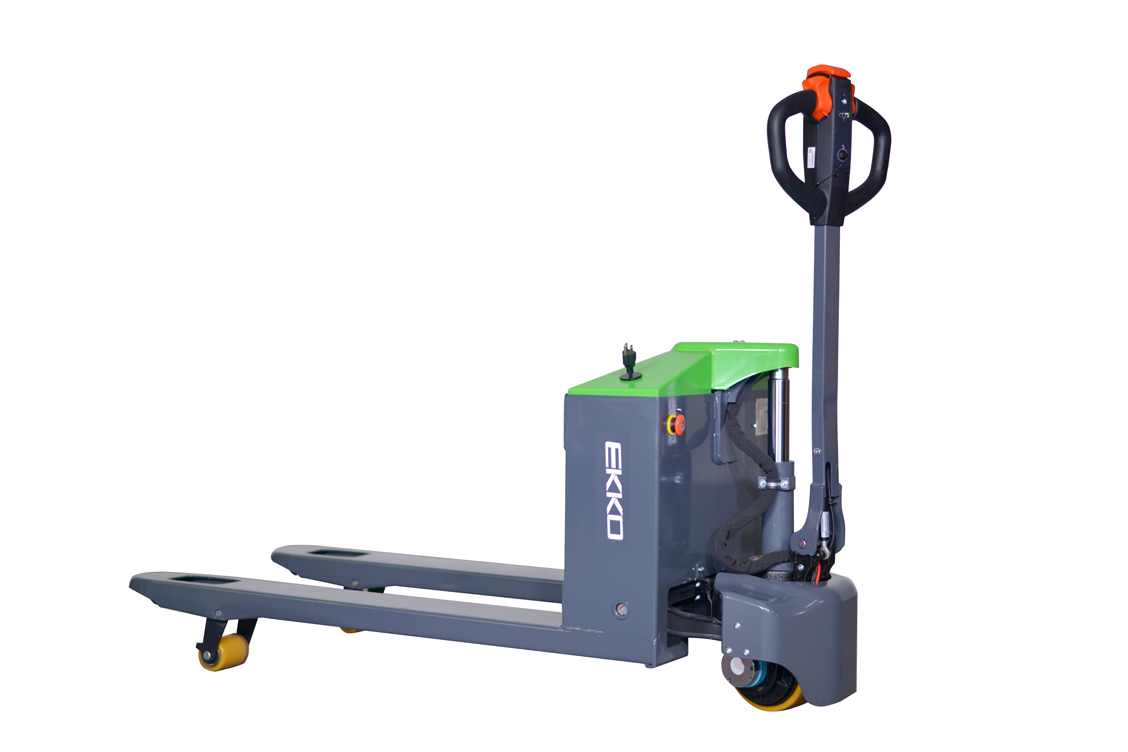

EP20JLi Full Electric Pallet Jack 4400 lb Capacity W/ PinPad

SKU: EP20JLi
  • Model   EP20JLI
    Drive type   Electric
    Manner of operation   Walkie
    Load Capacity Q (LBS) 4400
    Load Centre c (Inch) 23.6
    Axle centre to fork face  x (Inch) 37
    Wheel Base y (Inch) 47.6
    Tire material   PU
    Driving wheel size Φ×w(Inch) Φ8.26×2.75
    Bearing wheel size Φ×w(Inch) Φ3.15×2.36
    Qty of wheel,Front/Rear(x=driving wheel)     1x/2
    Tread b11 (Inch) 21.06
    Lifting Height h3 (Inch) 7.8
    The height of handle in the operation position h14 (Inch) 30.5/43.9
    Lowered fork height h13 (Inch) 3.35

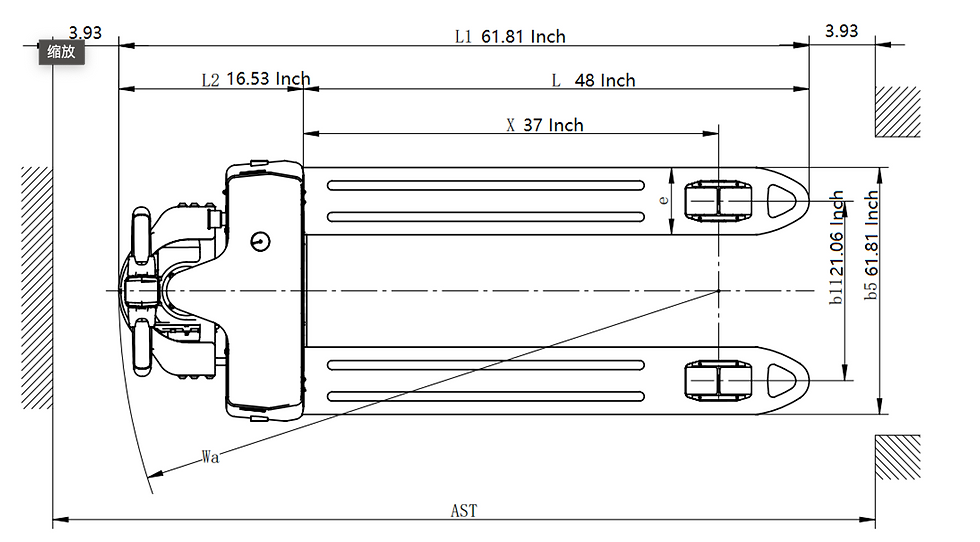

    Overall Length l1 (Inch) 61.81
    Body Length l2 (Inch) 16.53
    Overall Width b1/ b2 (Inch) 27
    Fork Size s/e/l (Inch) 1.97/5.9/45
    Fork Width b5 (Inch)

    27

    Min.Ground clearance m2 (Inch) 1.38
    Aisle width for pallets 39.37*47.24 crossways Ast (Inch) 69.7
    Aisle width for pallets 31.5*47.24 lengthways Ast (Inch) 71.6
    Turing Radius Wa (Inch) 53.7
    Driving Speed,load/unload (km/h) 4.2/4.5
    Maximum gradeability load/unload (%) 5/10
    Brake Type   Electromagnetic brake
    Drive Motor (kW) 1
    Lift Motor (kW) 0.8
    Lithium LiFePO4 Battery voltage   rate capacity (V/Ah) 48/20
    Battery Weight(±5%) LBS 26.4
    Type of drive control   DC
    Noise level (dB(A)) ≤70
    Service Weight(with battery) LBS 326
