The EKKO ES80E-LI Scissor Aerial Work Platform is a 990-lb capacity compact platform with four wheels and Curtis controller which allows you to make lifting, transporting loads, and moving products easily and safely. This product also complys with GB25849 and EN280 standards.



-Load Capacity 990 lb

-Raised Height 26.2' (315")

-Lowered Height 90.6''

-Size: Length 89" x Width 45"

-Steel construction

-3 Years Limited Warranty

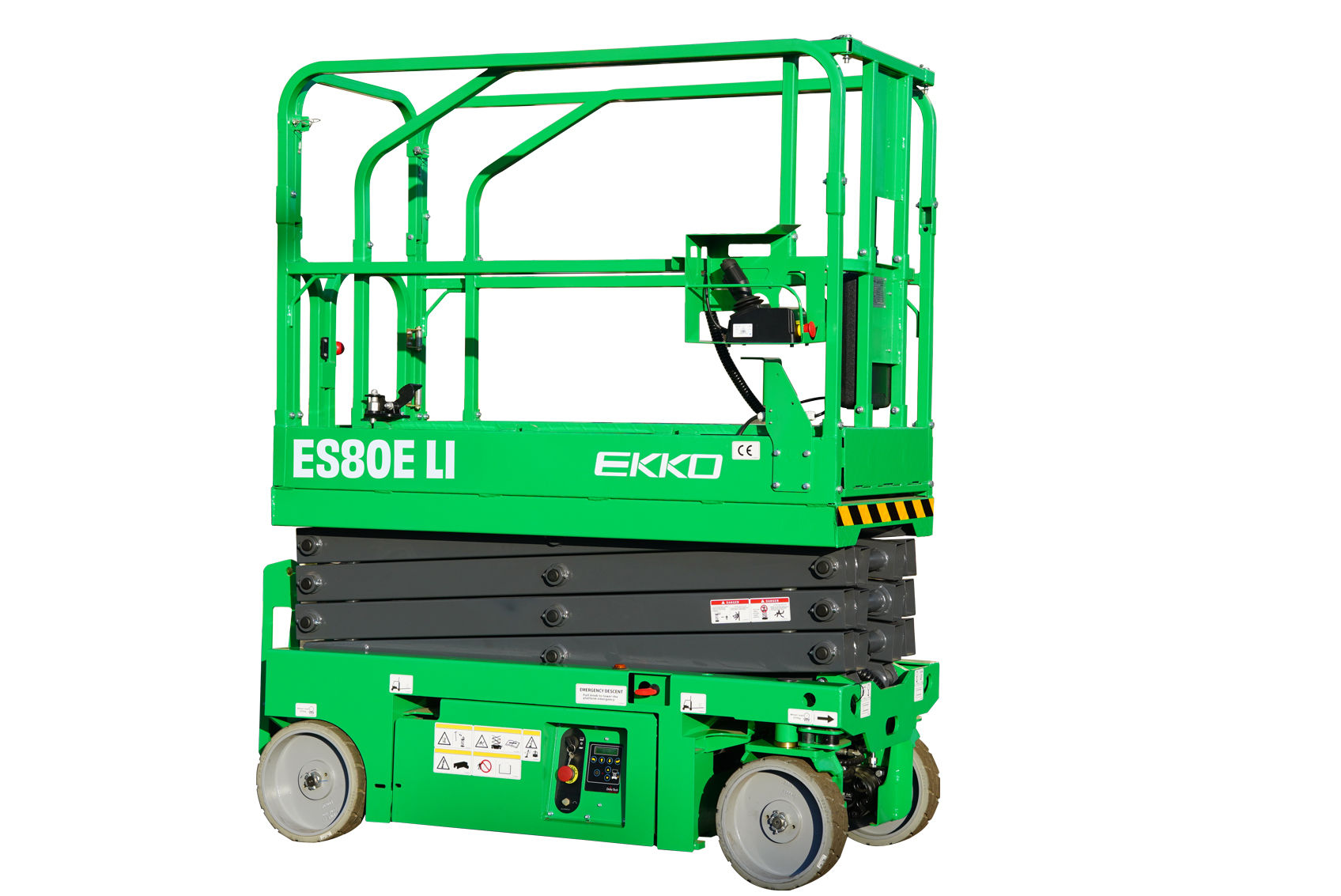

EKKO ES80E-LI Aerial Work Platform Lift Height 26.2' (315'')

  •     ES80E-LI
    product dimensions
    A1 Max working height  Inch 32.8' (394'')
    A2 Max platform height Inch 26.2' (315'')
    B Length Inch 94.5
    C Width Inch 45.27
    D  Overall height (guardrail not folded)  Inch 91.5"
    Overall height (folding guardrail)  Inch 67"
    Platform size (length EX width FX height G)  Inch 88.58x45.27
    G Guardrail height Inch 43.3
    H Platform extension size  Inch 39.37
     I Ground clearance (closed state)  Inch 3.74
    J  Ground clearance (lifting state)  Inch 0.78
     K Wheelbase  Inch 72.83
     product performance
    Maximum number of workers (indoor/outdoor)   2 / 1
     load rating  LBS 990
    Extended platform load rating LBS 265
    Driving speed (folding state) km/h 0-3.2
    Driving speed (lifting condition) km/h 0~0.8
    Minimum Turning radius (inside) Inch 0
    Minimum turning radius (outside) Inch 86.61
    Rise/fall time s 32/35
    Maximum allowable tilting Angle (front/left/right) ° 3°/1.5°
    Maximum allowable wind speed (indoor/outdoor) m/s 0/12.5
    Maximum allowable lateral force (indoor/outdoor) N 400/200
    Gradeability % 30
    control   proportional control
    actuator   Double front wheels
    braking    Double rear wheels
     Tyre specification/type Inch 15*5
    Product power
    Lift/drive motor kw 3.3/0.7x2
    Battery voltage/capacity V/Ah 25.6V/230AH
    Charger input voltage VAC 25.6V
    Charger output current A 36A
    control voltage VDC 24
    Hydraulic tank capacity L 22
    total weight  lbs 5512
