The EKKO EK30TLP Liquid Propane 4 Wheel Forklift is designed to be used for all your material handling demands, warehousing, and distribution.
This unit is manufactured with high durable quality, Tier 4 EPA compliant with the PSI 2.4L engine and competitive pricing.



  •  The operation space is enlarged and heightened overhead guard and using large arc shape of the overhead guard's front leg
  • Semi-suspension seat, and small steering wheel, electro-hydraulic direction changing and autombile type double combined switch effectively improve driving comfort level.
  • Cushion connection and whole suspension cab can absorb the vibrations of truck effectively.
  • Lowering damping device inside the lifting system reduces mast's shock and vibration, avoiding noise caused by goods falling to the ground.
  • Small turning radius makes steering flexible and easy.
  • with optimized hydraulic system, the truck is more energy-efficient and has lower fuel consumption.
  • The engine satisfies the CARB 4 regulation

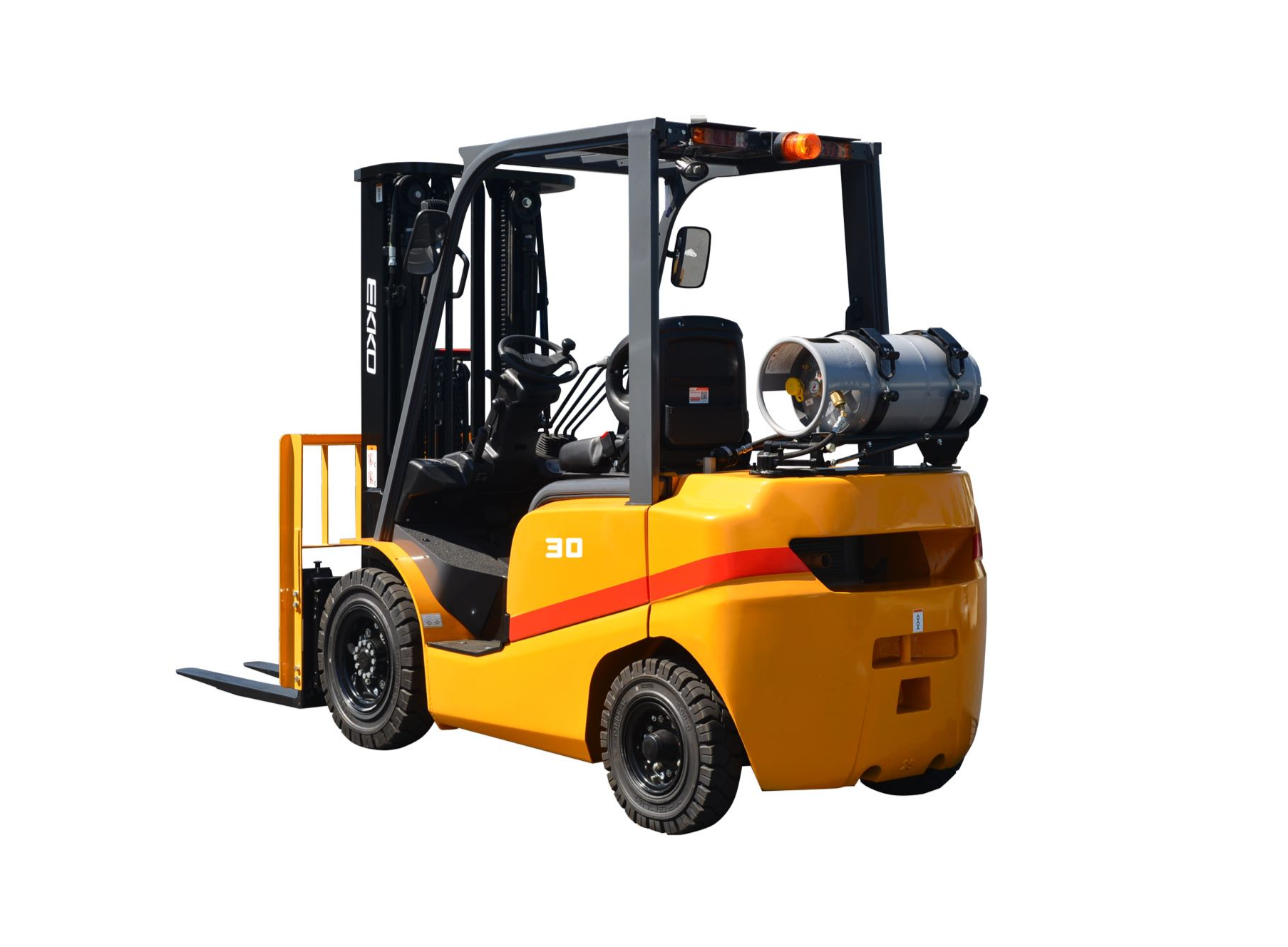

EKKO EK30TLP Forklift with solid pneumatic tires 6000 lbs., cap.

  • Model



    EK30TLP

    Drive type



    LPG

    Type of operation



    Propane

    Load Capacity

    LBS

    6000

    Load Center

    in

    24

    Lift height

    in

    185

    Wheelbase

    in

    66.9

    Service Weight

    LBS

    10,108

    Tire material



    Solid Pneumatic Tire

    Wheel



    28x9-15-12PR/6.50-10-10PR

    Service Brake



    Hydraulic Floor Pedal

    Overall width

    in

    48.2

    Overall length with forks

    in

    151

    Overall length without forks

    in

    106

    Min ground clearance (at the mast)

    in

    4.7

    Max traveling speed (loaded/unloaded)

    mph

    11/12.1

    Mast Overall height

    in

    86.2

    Free lifting height

    in

    37.9

    Overal Height w/ forks lifted

    in

    234

    Fork Size

    in

    42x4.9x1.7

    Battery

    V/ Ah

    12/60

    Engine Mode



    PSI 2.4

    Engine rated power

    HP/rpm

    LPG: 63/2700
