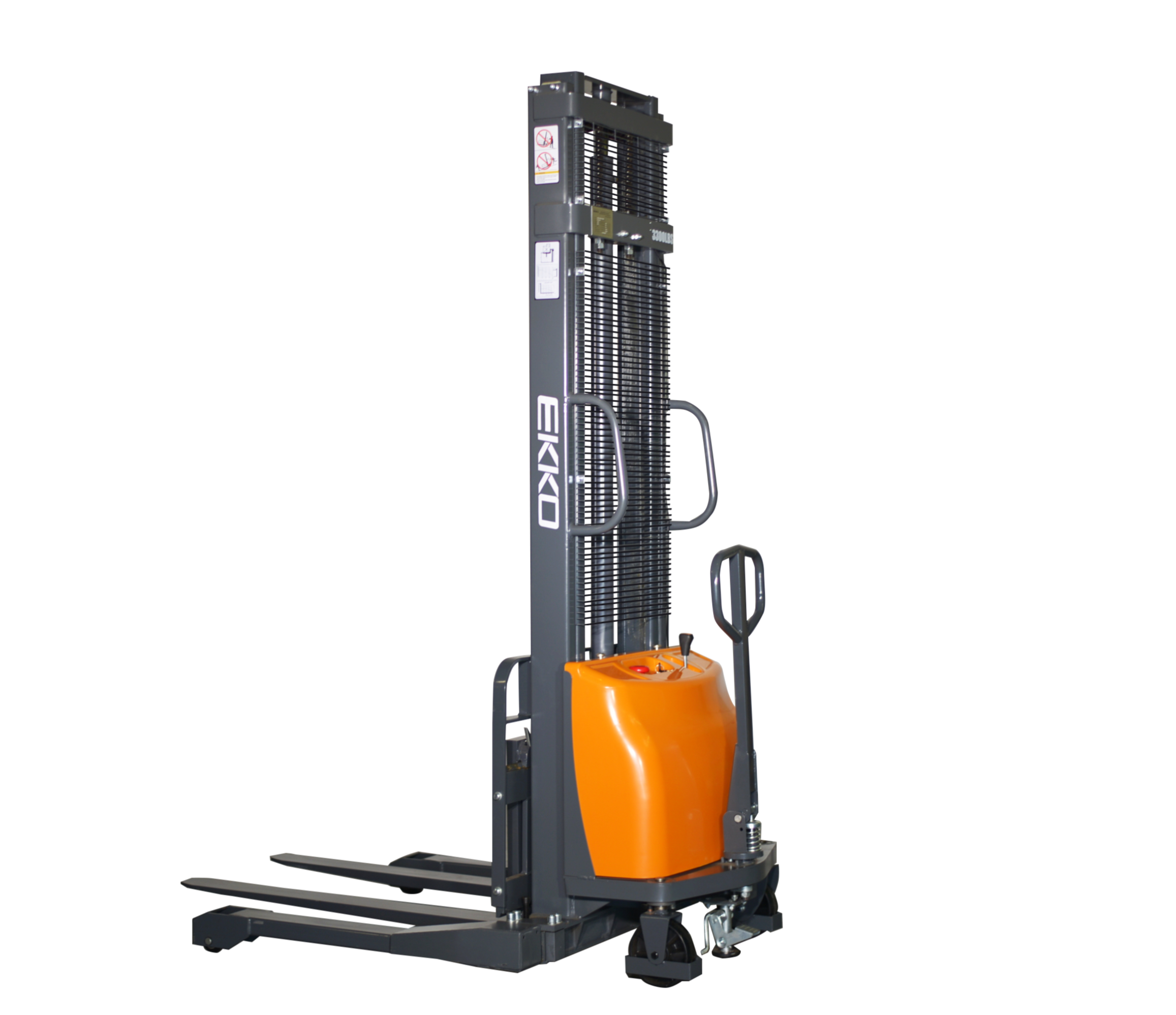

Left View
The EKKO EA15A Semi-Electric Straddle Stacker is designed with the combination of the versatility of forklift and a pallet stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

Features:
  • Load Capacity: 3,300 lbs
  • Raised Height: 118 in (9.83ft)
  • Adjustable Forks: 8.66-32 in
  • Adjustable Legs: 35-51 in
  • Fork Length: 45 in
  • Power lifting
  • Manual drive
  • 12V/15A Internal Charger included
  • 12V/120AH Lead Acid battery included
  • Ergonomic comfort handle
  • Steel construction with robotic welding

EKKO EA15A Semi-Electric Straddle Stacker, 3,300 lbs Capacity, 118" Height

SKU: EA15A
  • Model EA15A
    Load Capacity 3,300 lbs
    Lifting height Max. 118 in
    Load center distance 20 in
    Fork length 45 in
    Single fork width 4 in
    Overall fork width 8.66-32 in
    Lowered fork height 2.6 in
    Adjustable legs 35-51 in
    Turning radius 59 in
    Overall length 70 in
    Overall width  max 59 in
    Extended mast height 147 in
    Lowered mast height 85 in
    Battery Voltage 12V/120AH
    On-Board Charger 12V/15A
    Lift Motor 2.2 KW
    Service Weight 1,212 lbs
