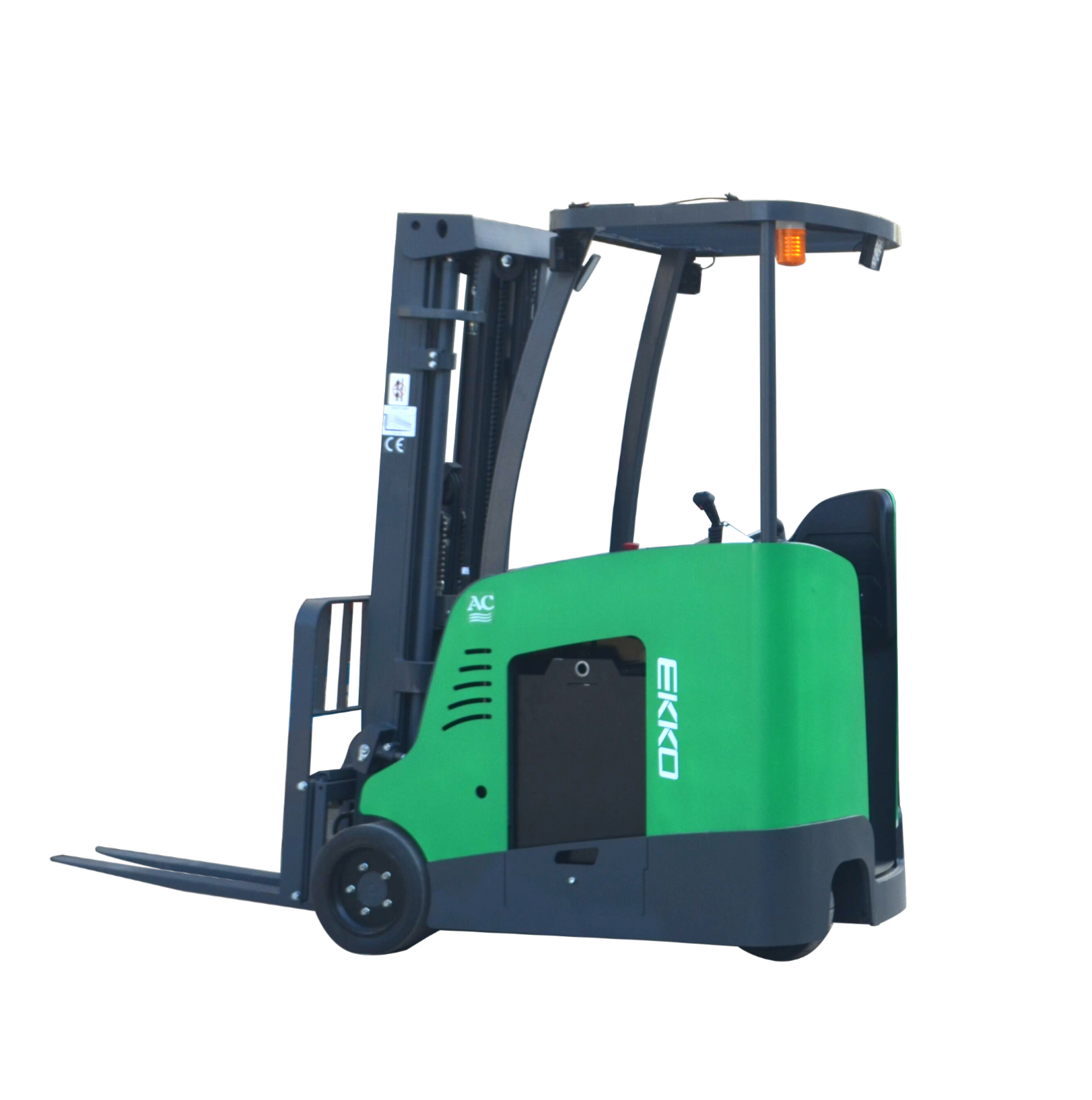

EK18RF-Li Stand-up Rider Forklift
The EKKO EK18RF-Li Stand-up Rider Forklift is designed for use for all of your material handling demands. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

  • Load Capacity 4000 lb
  • Raised Height 216" (18ft)
  • Side Shift
  • Adjustable Forks 9.4-35.6"
  • Fork Length 45.3“
  • Hydraulic Steering
  • Curtis Instrument Controller
  • German AC Drive Motor
  • Battery 48V/350Ah Lithium
  • Solid Cushion Load Tires
  • Polyeurathane Drive Tires
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger 440V three phase
  • 3 Year Limited Warranty


EK18RF-Li Stand-up Rider Forklift

SKU: EK18RF-Li

  • Model



    EK18RF-Li

    Power unit



    Electric

    Operation Type



    Rider

    Loading capacity

    Q (LBS)

    4000

    Load center

    c (Inch)

    24

    Axle centre to fork face

    x (Inch)

    11.5

    Wheelbase

    y (Inch)

    48.8

    Service weight with battery

    LBS

    7940

    Wheels type



    Solid wheel

    Driving wheel size

    Φ×w(Inch)　

    16×7-10.5（15.98*7.01*10.51）

    Bearing wheel size

    Φ×w(Inch)　

    13.5×5.2

    Wheels, number front/rear



    1×/2

    Track width

    b10 (Inch)

    35.04

    Mast/fork carriage tilt, fwd/bwd

    a/b (°)

    3/5

    Lowered mast height

    h1 (Inch)

    91.77

    Free lift height

    h2 (Inch)

    61.34

    Lift height

    h3 (Inch)

    216.54

    Extended mast height

    h4 (Inch)

    248.43

    Height of overhead guard (cabin)

    h6 (Inch)

    90.08

    Height of seat/stand-on platform

    h7 (Inch)

    9.06

    Overall length

    l1 (Inch)

    117.78

    Length to fork face

    l2 (Inch)

    72.52

    Overall width

    b1/ b2 (mm)

    42.52/42.13

    Fork dimensions

    s/e/l (Inch)

    1.58/4.72/45.28

    Width of forks

    b3 (Inch)

    36.22

    Ground clearance under mast

    m1 (Inch)

    2.95

    Min.Ground clearance

    m2 (Inch)

    3.86

    Aisle Width Requirment

    Ast (FT)

    10.5

    Min.Turning radius

    Wa (Inch)

    58.5

    Travel speed,laden/unladen

    (km/h)

    12/13

    Lifting speed, with/without load

    (mm/s)

    250/400

    Lowering speed, with/without

    (mm/s)

    240/258

    Climbing ability, with/without

    (%)

    6/10

    Service brake



    Hydraulic

    Drive motor, 60-minute rating

    (kW)

    6

    Lift motor rating at S3 15%

    (kW)

    7.7

    Battery according to DIN 43531/35/36 A,B,C,no



    no

    Battery voltage/rated capacity

    (V/Ah)

    48V/350Ah Lithium

    Power consumption VDI

    (mm)

    38*18.1*29.53

    Type of drive control



    AC

    Noise level at operator‘s ear

    (dB(A))

    ≤70

    steering type



    Hydraulic steering
